Pellerin Milnor Corporation

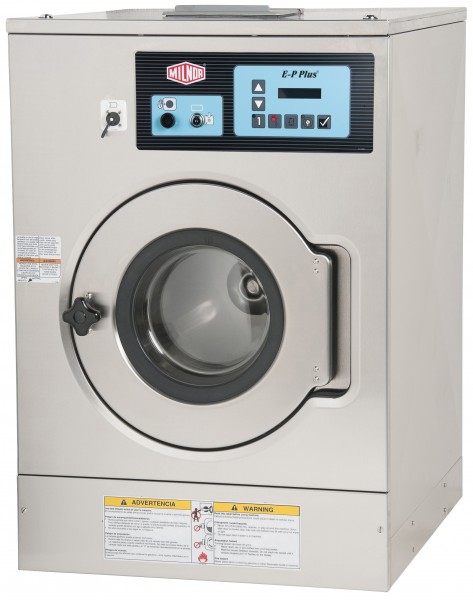

MWT12J5

Back

Image Gallery

Save Labor

The Milnor Model MWT12J5 provides multiple ways to save on your labor costs and improve employee efficiency, including:

E-P Plus® Microprocessor

This comprehensive control is equipped with 30 pre-programmed formulas (including 10 each for eight industries) and allows the operator advanced flexibility. The E-P Plus operator may manually create or alter formulas, which are guided by the control itself to insure accurate and proper washing. E-P Plus also features universal temperature control, programmable cooldown, and programmable bath soak and overnight soak. The two-line display notifies the operator of key benchmarks (wash step, time remaining, etc.), which increases productivity and reduces downtime.

Process Times

Milnor's microprocessors and software are fast and reliable allowing for quick processing of programmed formulas. Faster process times mean less time processing linen.

Overnight Bath Soak

The MWT12J5 overnight soak option eliminates the need for additional washes and production delays during shifts thanks to the extended time the stains are immersed in standing baths.

Back To Top

Save on Linen Replacement Costs

The second highest expense of a laundry is the cost of linen. The Milnor MWT12J5 can help you to extend linen life:

Safe Chemical Injection System

Chemicals are injected in the rear of the machine (unlike certain brands where chemicals are injected near the front of the machine at eye-level). Chemicals are diluted and flushed into the sump of the washer-extractor so that raw chemical does not come in direct contact with the linen or the stainless steel.

Back To Top

Save Energy

A Milnor MWT12J5 can help to reduce your utility bills with its:

Proper Cylinder Design

Milnor's bigger cylinder perforations provide better wash quality by promoting excellent interchange of the goods with water and chemistry, better rinsing by allowing rinse water to freely interact with the goods, and better extraction by allowing water to escape from goods easily and quickly. All components work together to ensure fewer costly rewashes and less drying time.

Frequency Drive System

A simple single-motor inverter drive reaches maximum extraction speed more gradually and efficiently, reducing peak electricity amperage draw compared to multi-speed motor machines.

Back To Top

Save Water

A Milnor MWT12J5 can reduce fresh water consumption with its:

Three Simple Fast Fill Water Valves

Simple hot and cold water inlets are used to quickly fill the washer without fill level overshoot. A third water inlet is used to thoroughly dilute chemicals so that raw chemical does not directly contact and damage linens.

Proper Cylinder Design

Perforation pattern and perforated ribs allow for rapid exchange of water with the goods, efficiently utilizing the water.

Back To Top

Save Money (Total Cost of Ownership)

There are many features designed into a MWT12J5 washer-extractor to reduce your total cost of ownership - saving you money for years AFTER your initial investment.

Feature Rich Machine

The MWT12J5 offers enhanced flexibility in programming at an affordable cost, making it an excellent choice for your laundry.

Long Machine Life

Milnor machines typically last longer because of their legendary ruggedness, thoughtful design and dependable quality.

Support Worldwide

Milnor laundry machinery is sold worldwide by the most highly regarded dealer network. Dealers not only provide complete equipment packages, but also can help with planning and installation and offer technical support.

Bearings

Tapered roller bearings have a large contact area - spreading force and contributing to long life. Front and rear bearings are fixed in the same housing, preventing damaging misalignment. And, a pressed-on basket means it does not need to be replaced when a bearing change becomes necessary. Milnor's bearing design is long proven while other companies keep experimenting.

L10 Life

Every Milnor design model is tested for a minimum of 1,000 consecutive hours in a high-extract, out-of-balance state - ensuring your machine is tough and will stand up to years of use.

Rugged, Proven Frame

Milnor frames are designed to prevent concentration of stress in one spot and all structural components are tied together for optimum stress dispersion. This proven structural integrity means your machines will last longer.

Back To Top

MWT12J5 Specifications

Suspension Rigid
Controller E-P Plus®
Capacity 25 lb.(12 kg)
Width 29 in.(737 mm)
Depth 36.31 in.(922 mm)
Height 43.19 in.(1097 mm)
Door Opening 12 in.(305 mm)
Shipping Weight 536 lb.(243 kg)
Cylinder Open Pocket
Cylinder Diameter 23 in.(584 mm)
Cylinder Depth 14 in.(356 mm)
Cylinder Volume 3.37 cu. ft.(95 L)
Wash Speed 43 rpm
Distribution Speed 90 rpm
Extraction Speed 530 rpm
Extraction G-Force 90 Gs
Extraction Group Low
Drive Motor 1 HP(0.75 kW)
Inlet Connection 0.75 in.(19 mm)
Drain Valve 2 in.(51 mm)
Markets OPL
Specifications and appearance are subject to change without notice.
