Pellerin Milnor Corporation

MWF27Z8

Back

Image Gallery

Video Gallery

Save Labor

The Milnor Model MWF27Z8 provides multiple ways to save on your labor costs and improve employee efficiency, including:

MilTouch™ Professional, Full Color Touch Screen Computer Control

Utilizing resistive touch screen technology and full VGA resolution, the MilTouch control has a clear and informative display which shows current machine status info including total formula time and time elapsed. With complete programming flexibility, formulas can be developed on a PC, saved to USB external memory and uploaded with a screen touch. With intuitive fault diagnosis and relevant troubleshooting suggestions, the MilTouch control streamlines employee training and eliminates operator guesswork.

Overnight Bath Soak

The MWF27Z8 overnight soak option eliminates the need for additional washes and production delays during shifts thanks to the extended time the stains are immersed in standing baths.

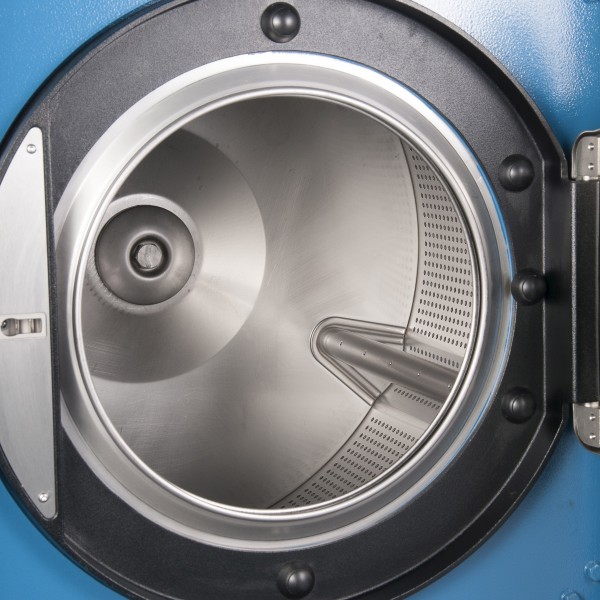

Proper Basket Design

Milnor's tall rib construction and precise cylinder speeds combine to provide excellent MAF - Mechanical Action Factor - ensuring goods get clean the first time, reducing time-consuming and costly rewashes.

RinSave® Water Saver

This innovative process facilitates significantly shorter formulas by eliminating up to two complete rinses per formula. This means the linens are processed faster because fewer steps are needed.

Back To Top

Save on Linen Replacement Costs

The second highest expense of a laundry is the cost of linen. The Milnor MWF27Z8 can help you to extend linen life:

Safe Chemical Injection System

Chemicals are injected in the rear of the machine (unlike certain brands where chemicals are injected near the front of the machine at eye-level). Chemicals are diluted and flushed into the sump of the washer-extractor so that raw chemical does not come in direct contact with the linen or the stainless steel.

Proper Basket Design

Spacious wash cylinders provide more room for lift and drop action and for goods to open up and absorb wash and rinse water - ensuring goods get clean the first time, reducing rewashes.

Back To Top

Save Energy

A Milnor MWF27Z8 can help to reduce your utility bills with its:

Proper Cylinder Design

Milnor's bigger cylinder perforations provide better wash quality by promoting excellent interchange of the goods with water and chemistry, better rinsing by allowing rinse water to freely interact with the goods, and better extraction by allowing water to escape from goods easily and quickly. All components work together to ensure fewer costly rewashes and less drying time.

Frequency Drive System

A simple single-motor inverter drive reaches maximum extraction speed more gradually and efficiently, reducing peak electricity amperage draw compared to multi-speed motor machines.

Back To Top

Save Water

A Milnor MWF27Z8 can reduce fresh water consumption with its:

Three Simple Fast Fill Water Valves

Simple hot and cold water inlets are used to quickly fill the washer without fill level overshoot. A third water inlet is used to thoroughly dilute chemicals so that raw chemical does not directly contact and damage linens.

Back To Top

Save Money (Total Cost of Ownership)

There are many features designed into a MWF27Z8 washer-extractor to reduce your total cost of ownership - saving you money for years AFTER your initial investment.

Dynamically Tuned Suspension

Milnor's dynamically tuned suspension features a cutting-edge design that employs a unique, two-point suspension system. The center of mass is located where an imbalance would occur. With Smooth Coil Suspension System, constructed of highly-engineered fabric and rubber layered coils which provide low natural frequencies, vibration is constantly isolated, delivering smooth operation and performance. Dynamic forces are evenly applied for minimum vibration, which provides smooth extraction, less wear and tear, and longer machine life.

Feature Rich Machine

The MWF27Z8 offers enhanced flexibility in programming at an affordable cost, making it an excellent choice for your laundry.

Long Machine Life

Milnor machines typically last longer because of their legendary ruggedness, thoughtful design and dependable quality.

Support Worldwide

Milnor laundry machinery is sold worldwide by the most highly regarded dealer network. Dealers not only provide complete equipment packages, but also can help with planning and installation and offer technical support.

Bearings

Tapered roller bearings have a large contact area - spreading force and contributing to long life. Front and rear bearings are fixed in the same housing, preventing damaging misalignment. And, a pressed-on basket means it does not need to be replaced when a bearing change becomes necessary. Milnor's bearing design is long proven while other companies keep experimenting.

L10 Life

Every Milnor design model is tested for a minimum of 1,000 consecutive hours in a high-extract, out-of-balance state - ensuring your machine is tough and will stand up to years of use.

Back To Top

MWF27Z8 Specifications

Suspension Suspended
Controller MilTouch™
Capacity 60 lb.(27 kg)
Width 39.63 in.(1007 mm)
Depth 57.51 in.(1461 mm)
Height 65.5 in.(1664 mm)
Door Opening 15.63 in.(397 mm)
Net Weight 1851 lb.(840 kg)
Shipping Weight 2282 lb.(1035 kg)
Cylinder Open Pocket
Cylinder Diameter 30 in.(762 mm)
Cylinder Depth 22 in.(559 mm)
Cylinder Volume 9 cu. ft.(255 L)
Wash Speed 38-43
Distribution Speed 68 rpm
Extraction Speed 840 rpm
Extraction G-Force 300 Gs
Extraction Group High
Drive Motor 5 HP(3.73 kW)
Inlet Connection 0.75 in.(19 mm)
Drain Valve 3 in.(76 mm)
Markets Wetclean
Specifications and appearance subject to change without notice.
