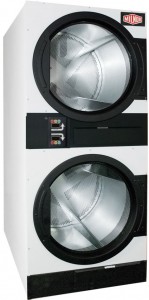

M444 Specifications

Cabinet Stack
Capacity 45 lb.(20 kg)
Width 34.32 in.(872 mm)
Depth 53.19 in.(1351 mm)
Height 80.94 in.(2056 mm)
Door Opening 27 in.(686 mm)
Net Weight 905 lb.(411 kg)
Cylinder Diameter 32.75 in.(832 mm)
Cylinder Depth 30 in.(762 mm)
Cylinder Volume 14.6 cu. ft.(413 L)
Heat Source Gas, Electricity
Drive Motor 0.75 HP(0.56 kW)
Blower Motor n/a
Exhaust Connection 8 in.(203 mm)
Eco Dry No
Roller Drive Yes
Specifications and appearance are subject to change without notice. See dimensional drawing for complete details.
