Pellerin Milnor Corporation

42026V5J

Back

Save Labor

The Milnor Model 42026V5J provides multiple ways to save on your labor costs and improve employee efficiency, including:

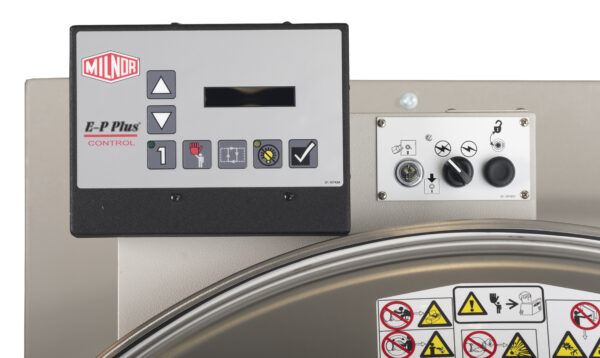

E-P Plus® Control

This comprehensive control is equipped with 30 pre-programmed formulas (including 10 each for eight industries) and allows the operator advanced flexibility. The E-P Plus operator may manually create or alter formulas, which are guided by the control itself to insure accurate and proper washing. E-P Plus also features universal temperature control, programmable cooldown, and programmable bath soak and overnight soak. The two-line display notifies the operator of key benchmarks (wash step, time remaining, etc.), which increases productivity and reduces downtime.

Proper Basket Design

Milnor's tall rib construction and precise cylinder speeds combine to provide excellent MAF - Mechanical Action Factor - ensuring goods get clean the first time, reducing time-consuming and costly rewashes.

Back To Top

Save on Linen Replacement Costs

The second highest expense of a laundry is the cost of linen. The Milnor 42026V5J can help you to extend linen life:

Safe Chemical Injection System

Chemicals are injected in the rear of the machine (unlike certain brands where chemicals are injected near the front of the machine at eye-level). Chemicals are diluted and flushed into the sump of the washer-extractor so that raw chemical does not come in direct contact with the linen or the stainless steel.

Back To Top

Save Energy

A Milnor 42026V5J can help to reduce your utility bills with its:

Frequency Drive System

A simple single-motor inverter drive reaches maximum extraction speed more gradually and efficiently, reducing peak electricity amperage draw compared to multi-speed motor machines.

Back To Top

Save Water

A Milnor 42026V5J can reduce fresh water consumption with its:

RinSave® Water Saver

With the innovative RinSave feature, a rinse bath or two may be eliminated reducing water consumption by up to 0.4 gallons per pound of linen washed

Three Simple Fast-Fill Water Valves

Simple hot and cold water inlets are used to quickly fill the washer without fill level overshoot. A third water inlet is used to thoroughly dilute chemicals so that raw chemical does not directly contact and damage linens.

Back To Top

Save Money (Total Cost of Ownership)

There are many features designed into a 42026V5J washer-extractor to reduce your total cost of ownership - saving you money for years AFTER your initial investment.

Dynamically Tuned Suspension

Milnor's dynamically tuned suspension features a cutting-edge design that employs a unique, two-point suspension system. The center of mass is located where an imbalance would occur. With Smooth Coil Suspension System, constructed of highly-engineered fabric and rubber layered coils which provide low natural frequencies, vibration is constantly isolated, delivering smooth operation and performance. Dynamic forces are evenly applied for minimum vibration, which provides smooth extraction, less wear and tear, and longer machine life.

Feature Rich Machine

The 42026V5J offers enhanced flexibility in programming at an affordable cost, making it an excellent choice for your laundry.

Long Machine Life

Milnor machines typically last longer because of their legendary ruggedness, thoughtful design and dependable quality.

Support Worldwide

Milnor laundry machinery is sold worldwide by the most highly regarded dealer network. Dealers not only provide complete equipment packages, but also can help with planning and installation and offer technical support.

Bearings

Tapered roller bearings have a large contact area - spreading force and contributing to long life. Front and rear bearings are fixed in the same housing, preventing damaging misalignment. And, a pressed-on basket means it does not need to be replaced when a bearing change becomes necessary. Milnor's bearing design is long proven while other companies keep experimenting.

L10 Life

Every Milnor design model is tested for a minimum of 1,000 consecutive hours in a high-extract, out-of-balance state - ensuring your machine is tough and will stand up to years of use.

Back To Top

42026V5J Specifications

Suspension Rigid
Cabinet Classic
Controller E-P Plus®
Capacity 140 lb.(63 kg)
Width 50.31 in.(1278 mm)
Depth 77.69 in.(1973 mm)
Height 69.63 in.(1769 mm)
Door Opening 21.69 in.(551 mm)
Shipping Weight 2054 lb.(932 kg)
Cylinder Open Pocket
Cylinder Diameter 42 in.(1067 mm)
Cylinder Depth 26 in.(660 mm)
Cylinder Volume 20.8 cu. ft.(589 L)
Wash Speed 25-41
Distribution Speed 60 rpm
Extraction Speed 200 to 500 rpm
Extraction G-Force 150 Gs
Extraction Group Medium
Drive Motor 10 HP(7.46 kW)
Inlet Connection 1.25 in.(32 mm)
Drain Valve 3 in.(76 mm)
Markets OPL
Specifications and appearance are subject to change without notice.
